Elevator systems, whether in high-rise commercial buildings or residential places, rely on a variety of carefully engineered components to ensure safe operation. Among these, elevator guide rails play a critical but often overlooked role. While passengers may never see them, guide rails are important to the elevator's stability, alignment, and safety.

Let’s explore what elevator guide rails are, their specifications, their importance, and how many are typically used in an elevator system.

What is an Elevator Guide Rail?

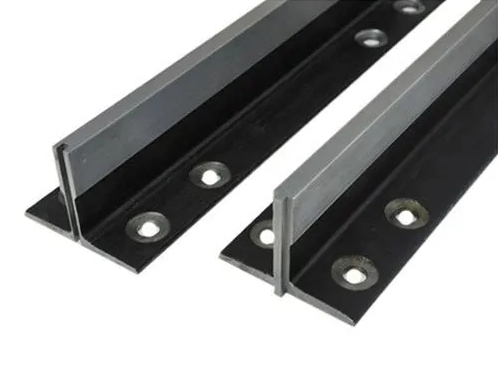

An elevator guide rail is a vertical steel track installed inside the elevator shaft, which provide precise alignment and lateral stability for both the elevator car and the counterweight. These rails act as fixed pathways, ensuring that the elevator car moves smoothly between floors without swaying, and deviation.

Guide rails are typically made from cold-drawn steel or hot-rolled T-section steel, treated with machining or grinding. These processes can give them high dimensional accuracy and surface smoothness.

Anyway, they serve two essential functions:

• Guiding the elevator car and counterweight during normal operation
• Restraining them during emergency situations, such as when the safety gear is activated

Specification of Elevator Guide Rails

Elevator guide rails are manufactured according to international standards, such as EN 81-20 and ISO 7465. They vary depending on the speed, load capacity, and type of elevator.

Here are the most common specifications:

• Material: Steel (usually low-carbon steel)
• Standard: T89, T114, T127, T140, T150
• Length: Typically 5 meters per section
• Joint: Machined ends with fishplates and bolts
• Tolerance: Tight dimensional tolerances for straightness and surface finish
• Mounting: Secured to the shaft wall using rail brackets or fixing devices at regular intervals

For high-speed elevators, machined guide rails are used to minimize vibration and also ensure greater ride comfort.

The Importance of Elevator Guide Rail

Though often hidden behind the walls of the elevator shaft, guide rails are indispensable to the safe and efficient function.

Their importance can be seen in the following areas:

• Safety: In case of overspeed or free fall, the elevator's safety gear clamps onto the guide rails to stop the car.
• Smoothness: They prevent lateral movement, reducing noise and vibration for a more comfortable ride.
• Precise Positioning: Guide rails ensure that the car doors align perfectly with each floor level.
• Support: They maintain the counterweight's path, balancing the car's motion.
• Emergency Handling: In malfunction scenarios, guide rails provide a controlled path for the elevator's braking system to engage safely.

How Many Guide Rails Does an Elevator Have?

Typically, an elevator system has two sets of guide rails:

• 2 guide rails for the elevator car
• 2 guide rails for the counterweight

So, in total, there are usually 4 guide rails per elevator system. However, in some designs—especially high-speed or heavy-duty systems—additional guide rails may be used to improvement.

Elevator guide rails may not be visible to we everyday user, but their role is significent to the safety, reliability, and vertical transportation. Choosing the right type and specification of guide rails, along with proper installation and maintenance, is critical for any elevator system to operate smoothly and securely over time. Feel free to contact us!
